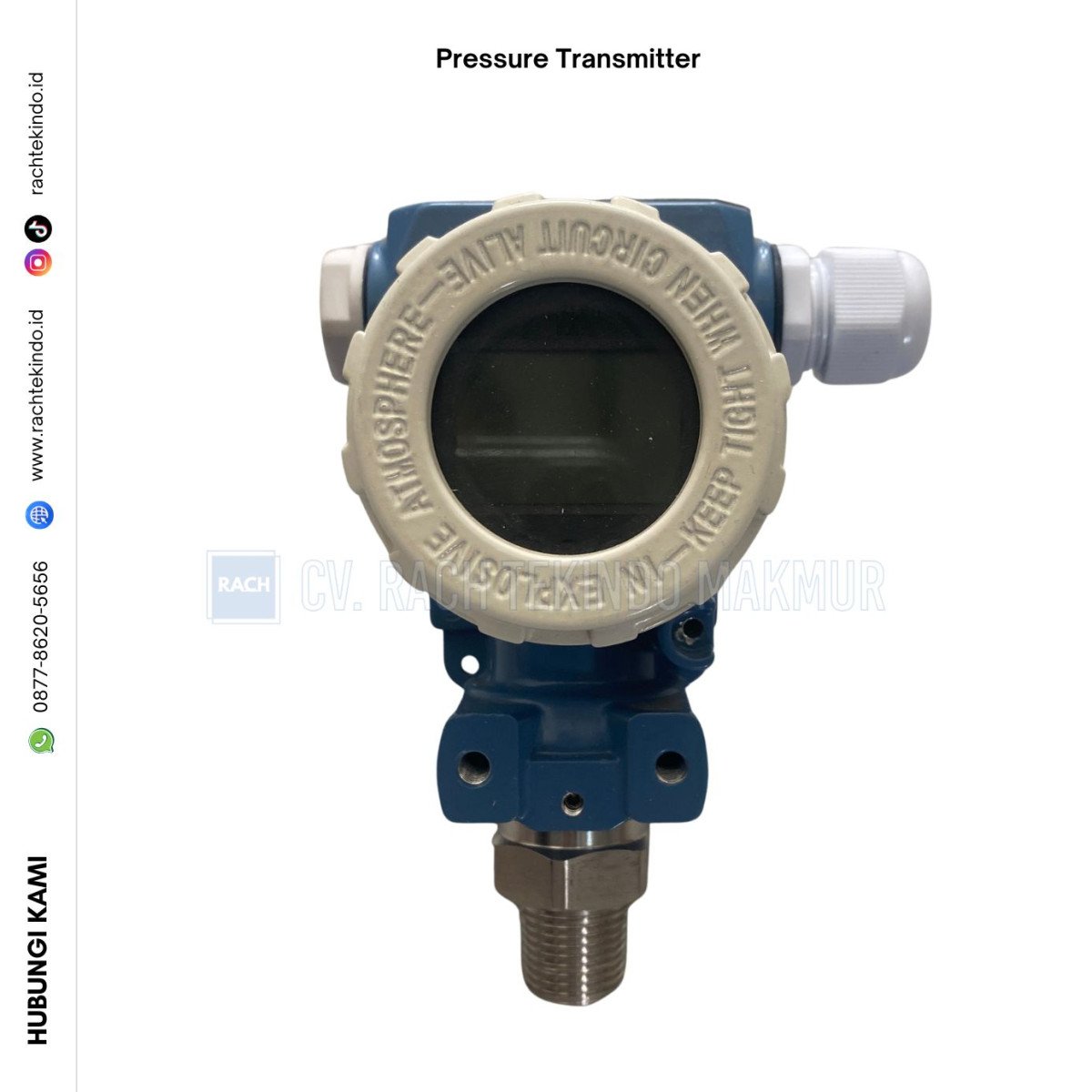

A Pressure Transmitter is an industrial measuring instrument designed to monitor the pressure of liquids, gases, and steam within a process system and convert the measured pressure into a standardized electrical signal such as 4–20 mA, 1–5 V, or digital communication protocols including HART, Modbus, and RS485. The transmitted signal is then sent to PLC, DCS, SCADA, or other industrial control systems for real-time monitoring, process control, and safety automation.
Pressure transmitters utilize high-precision sensing elements that detect changes in process pressure and convert them into proportional electronic signals. This technology provides accurate, stable, and reliable pressure measurements for a wide range of industrial applications.
Available in Gauge Pressure, Absolute Pressure, Sealed Gauge Pressure, and Differential Pressure configurations, Pressure Transmitters are widely used in oil & gas, petrochemical, water treatment, food & beverage, pharmaceutical, power generation, HVAC, and industrial automation systems.
| Parameter |
Specification |
| Instrument Type |
Pressure Transmitter |
| Measurement Principle |
Piezoresistive / Silicon Sensor (Model Dependent) |
| Process Media |
Liquids, Gases, Steam |
| Pressure Type |
Gauge, Absolute, Sealed Gauge |
| Output Signal |
4–20 mA, 1–5 V, HART, Modbus, RS485 (Optional) |
| Accuracy |
Up to ±0.075% FS (Depending on Model) |
| Power Supply |
12–36 VDC |
| Body Material |
Stainless Steel |
| Wetted Parts |
Stainless Steel 316L |
| Protection Class |
IP65 / IP67 |
| Operating Temperature |
Depending on Model |
| Process Connection |
Threaded, Flanged, Sanitary (Optional) |
| Applications |
Oil & Gas, Water Treatment, Chemical, HVAC, Food & Beverage, Pharmaceutical, Power Generation |
Starting From
IDR8.000.000
Prices may vary depending on specifications,
material, dimensions, pressure rating,
and product configuration.
-
Customizable to your requirements
-
Free technical consultation
-
Fast official quotation
Request a Quote
